Recirculating Air Dryer/Drying Oven

Drying Ovens are intended to re-circulate the exhaust flue gases which are generated outside the furnace in order to pre heat the steel structure.
• Reduces zinc consumption by reducing splash and dross
• Reduces dip time
• Improves quality of galvanizing
• Specifically designed for the demanding galvanizing operation
• High volume circulation fan
• Engineered specifically for each unique application
• Relay Logic Control Panel with precise temperature control
• Dual push button stations for operator
• Effective drying with uniform heating
• Insulated covered Sliding Doors with power drives

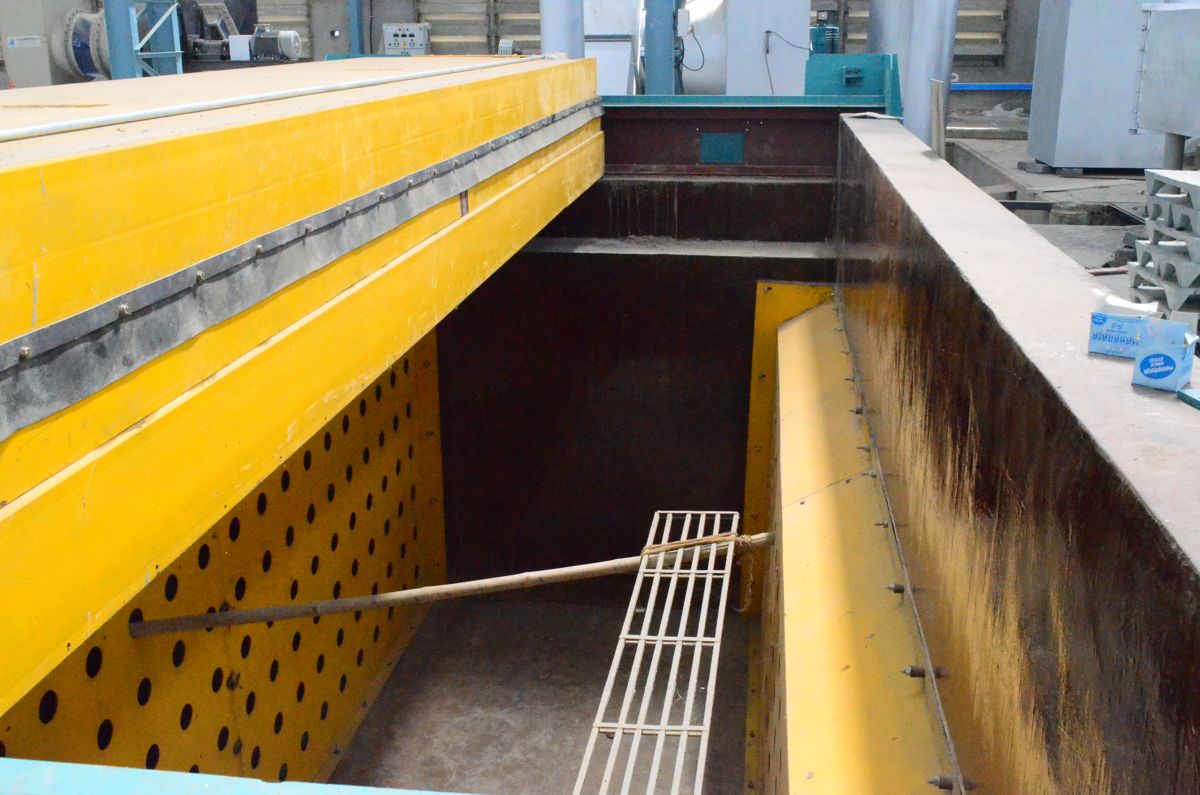

• It gives forced air by powerful recirculating fan based upon economical dryer design criteria for uniform heating. Oven chamber features high volume cross flow circulation through load for effective drying.
• Simplified Heavy Duty Construction
• Waste heat of furnace utilised in the dryer for heating of loads.

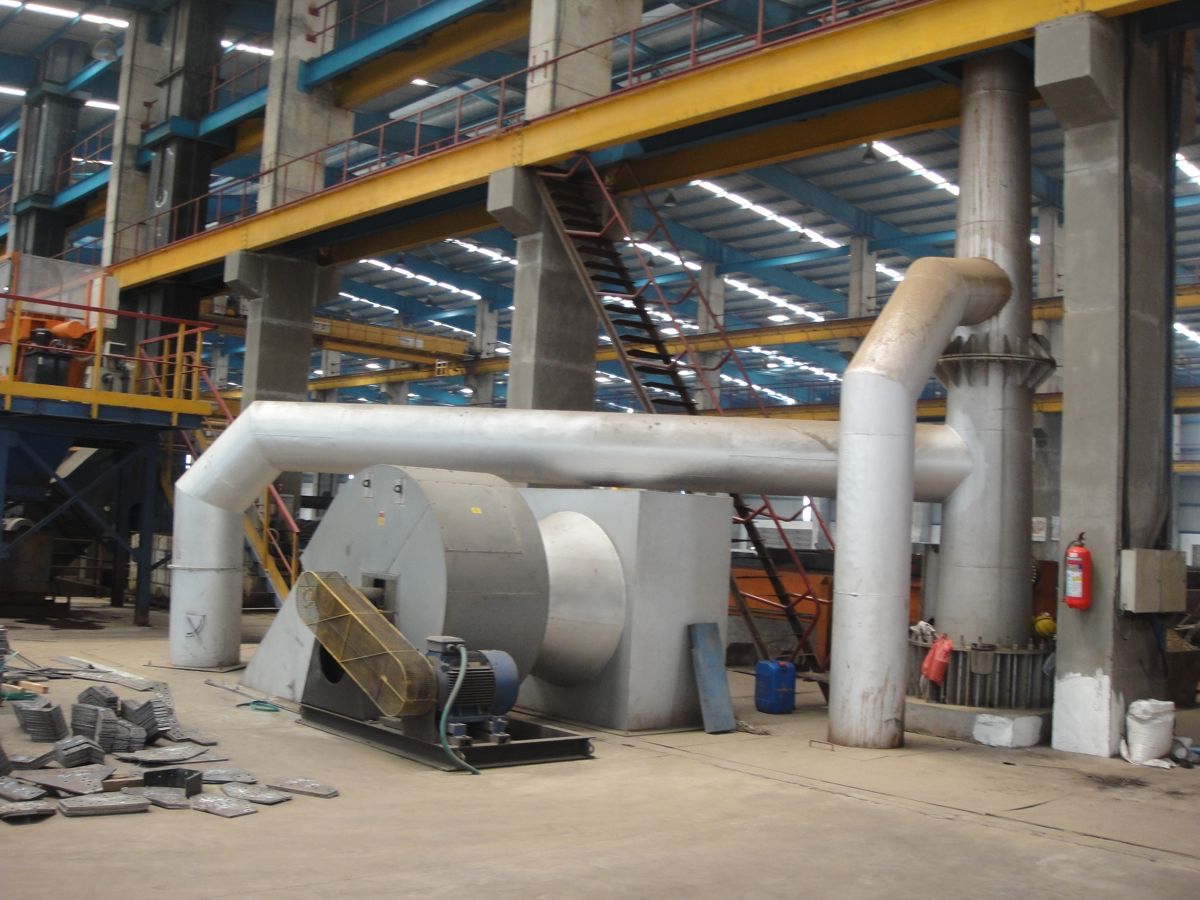

• For enhanced drying galvanizing furnaces can be supplied with flue stack recuperators to produce a clean hot air stream from the furnace exhaust gases to heat the oven. Auxiliary burners not required.
• No auxiliary burners necessary

Options available:
• PLC control system
• High temperature conveyor
• Heat recovery from furnace
